Luminlay
High visibility glow-in-the-dark position markers.
(Menu) *Click to Jump
HOW TO ORDER
PICKGUARD
NECK SHAPE
FINGERBOARD RADIUS
ETERNAL FRET
POSITION MARKERS
COLOR CHART
HOW TO ORDER
Giving you the freedom to design your custom instrument
We think that there exist as many "best instruments" as there are players - and we would like to help you find yours.
Start out by imagining what your ideal sound and appearance would be for your guitar, along with other specifications. Our production technology and experience is here to build such an instrument for you. Please don't hesitate to contact us with any questions, and if you at all can - do visit our showroom in Arakawa-ku, Tokyo, to try our instruments. It will be our pleasure to help you realise the musical goals in your life.
Click here for order request and estimate.
| 1. Fill in an order sheet |
Please select the desired specifications from the appropriate online form for the model of your choice. You can find our online order forms HERE.
|
|---|---|
| 2. Estimate & approximate delivery time |
Based on your submitted order sheet, we will give you a price estimate along with a preliminary delivery date.
|
| 3. Sign the completed order form |
After confirming with us the details in step (3), regarding precise specification, payment, and delivery dates, please sign the detailed order sheet, and submit it to us with your signature. Only after receiving this SIGNED order, does it become an official order document, after which we will start building your instrument. |
| 4. Completion & delivery |
When your instrument is ready, we will send it to the client. |
If you have any questions about the order process, please contact our sales representative, at:
info@fcgrtokyo.com
PICKGUARD
※ Here are some sample designs:
① White 1Ply
② Aged white 1Ply
③ Black 1Ply
④ Black, matte 1Ply
⑤ Black 3Ply
⑥ White 3Ply
⑦ Black-red-black 3Ply
⑧ Parchment 3Ply
⑨ Mint green 3Ply
⑩ White pearloid 4Ply
⑪ Black pearloid 4Ply
⑫ Mint pearloid 4Ply

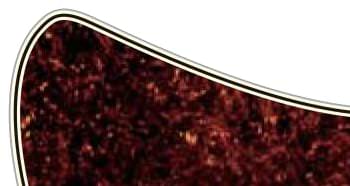

⑬ Tortoiseshell 4Ply

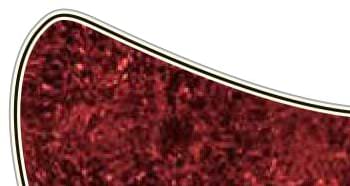

⑭ Black tortoiseshell 4Ply
⑮ Red tortoiseshell 4Ply
⑯ Acrylic tortoiseshell 1Ply
⑰ Clear acrylic 1PlyNECK SHAPE
Guitar nut width: 42mm
Bass nut widths: JB-4st=38mm、PB-4st=42mm、Rhino & Anthra-4st=38mm、Dulake-4st=39mm、Bass 5st=46mm
For 4- and 5-string basses, the neck thickness at the nut is the same, but the width is different.
| Guitars | ||
|---|---|---|
| 1F | 12F | |
| Guitar U |
21.0mm
|
23.5mm
|
| Guitar 60's U |
21.5mm
|
25.0mm
|
| Guitar Vin V |
22.5mm
|
25.0mm
|
| Guitar Fat U |
23.0mm
|
25.0mm
|
| Basses | ||
|---|---|---|
| 1F | 12F | |
| JB U |
20.5mm
|
25.0mm
|
| JB Fat U |
22.0mm
|
25.0mm
|
| PB U |
20.5mm
|
25.0mm
|
| PB Fat U |
21.5mm
|
25.0mm
|
FINGERBOARD RADIUS
Small radius (number): recommended for those who grab the neck, or play with a "thumb around the neck" grip.
Large radius (number): with a flatter radius, even lower string action is possible.
| 184R |
 |
Fender vintage style |
|---|---|---|
| 254R |
 |
|
| 280R |
 |
|
| 305R |
 |
Gibson Les Paul style |
| 340R |
 |
|
| 400R |
 |
ETERNAL FRET
SPEEDY: highly durable frets, with a fast, bright sound.
WARM: sound and feel closer to traditional nickel silver frets.
| 014 |
 |
Slim & shallow | Fender® vintage style |
|---|---|---|---|
| 015 |
 |
Medium width, tall height | Gibson® standard style |
| 016 |
 |
Medium width, shallow height | Gibson® historic style |
| 017 |
 |
Narrow & high | Jim Dunlop® 6105 style |
| 018 |
 |
Wide & elevated | Jim Dunlop® 6100 style |
| 019 |
 |
Medium width & medium height | Paul Reed Smith® style |
- Fender®, Gibson®, Paul Reed Smith® and Jim Dunlop® are registered trademarks of the respective companies.
POSITION MARKERS
| Dot |
|
|---|---|
|
Oval |
 |
|
Oval |
*The pattern varies depending on the part
*Since the acrylic material is slightly transparent, the color will vary depending on the fingerboard material used. |
| Block |
White Pearloid
|
Black
|
|
| Special Inlay |
Custom specification inlays are also available on request.
|
| Side Position Markers | |
|---|---|
| Diameter | 2mm、2.5mm、3mm |
| Color |
|
- Some of the available options are model-specific.
- Please refer to the order sheet or the configurator to see the available specifications for each instrument.
- Fender®, Gibson®, Paul Reed Smith® and Jim Dunlop® are registered trademarks of the respective companies.
