Dulake series

Dulake Flat

Sandwich body with a one-piece maple neck - flexible choice with dominant low-mids

A flat-body design laminated out of three types of wood makes this variant a flexible choice for everything from fingerstyle, to slap, and pick playing. A sandwich construction with an ash or alder back, a top-wood of your choice, and a wenge tone-block in between.

Fast and responsive sound, with a long sustain and fat low-mid character.



*The logo design of all original guitars and basses products will be changed from orders received on February 1, 2020





*Product specifications and prices are subject to change without notice.



Specifications

Dulake Flat-4st. Base Price (before tax): ¥642,000

Order
Neck / Shape

Maple / Fat U-Shape

Scale

34in

Joint

Arimizo & One Point Joint

Nut / Nut Width

Real Carbon / 39mm

Fret

F.C.G.R. SP-SF-09 WARM

Fingerboard Radius

400R

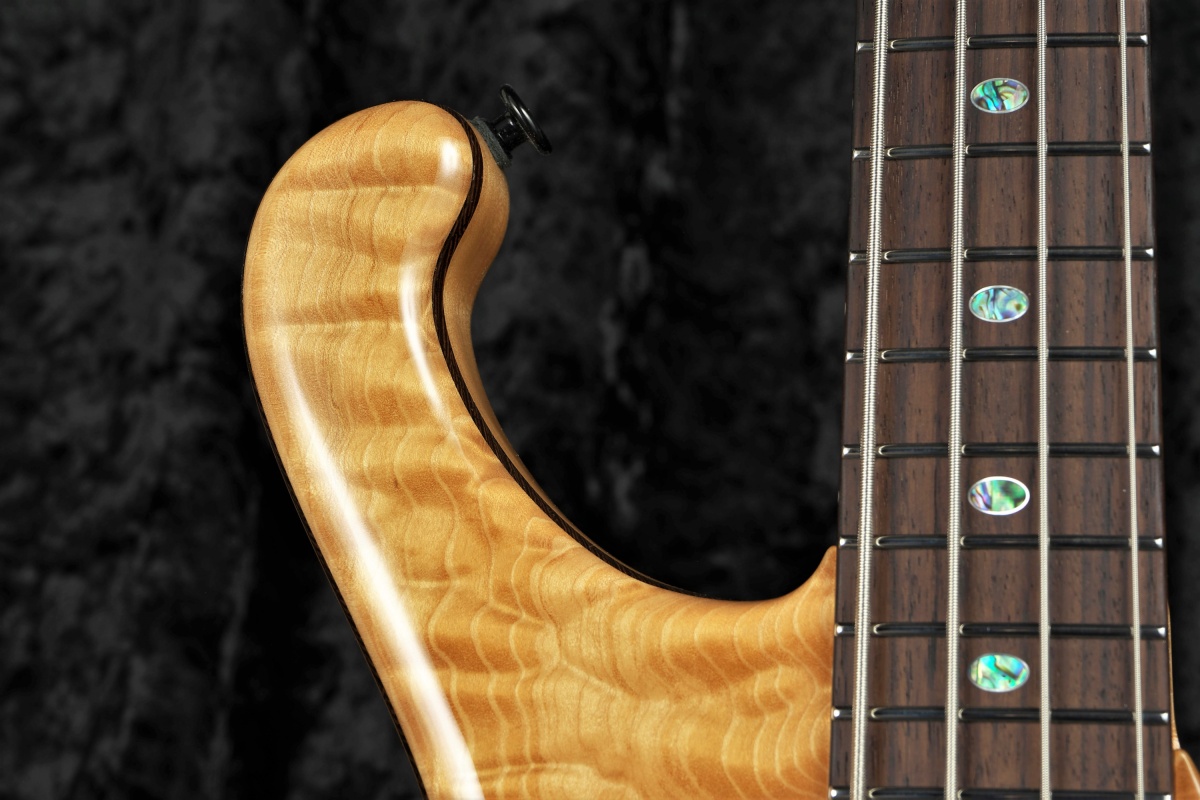

Top Position Mark

・Rosewood FB:Abalone with border Oval ・Maple FB:White Shell with border Oval

Side Position Mark

・Rosewood FB:Luminlay - 3mm (Green) ・Maple FB:Luminlay w/Black Pipe - 3mm (Green)

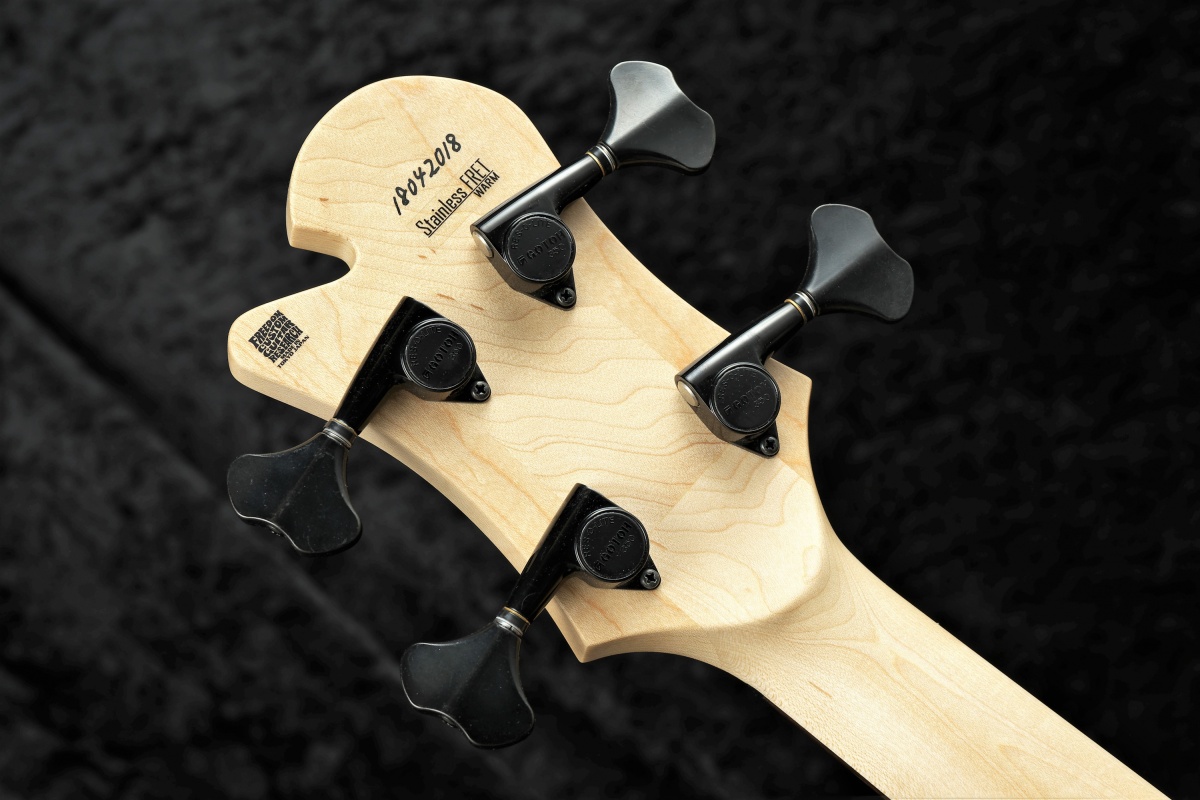

Machinehead

GOTOH GB350-2L2R

Body Top Wood

Standard Grade Figured Maple 2pc / Wenge

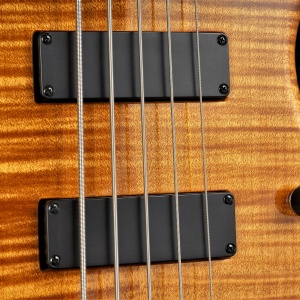

Pickups

Dulake HB 19mm Pitch Set

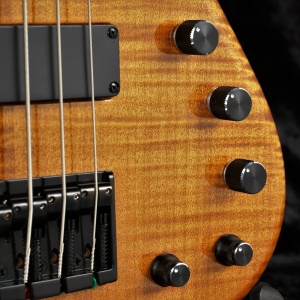

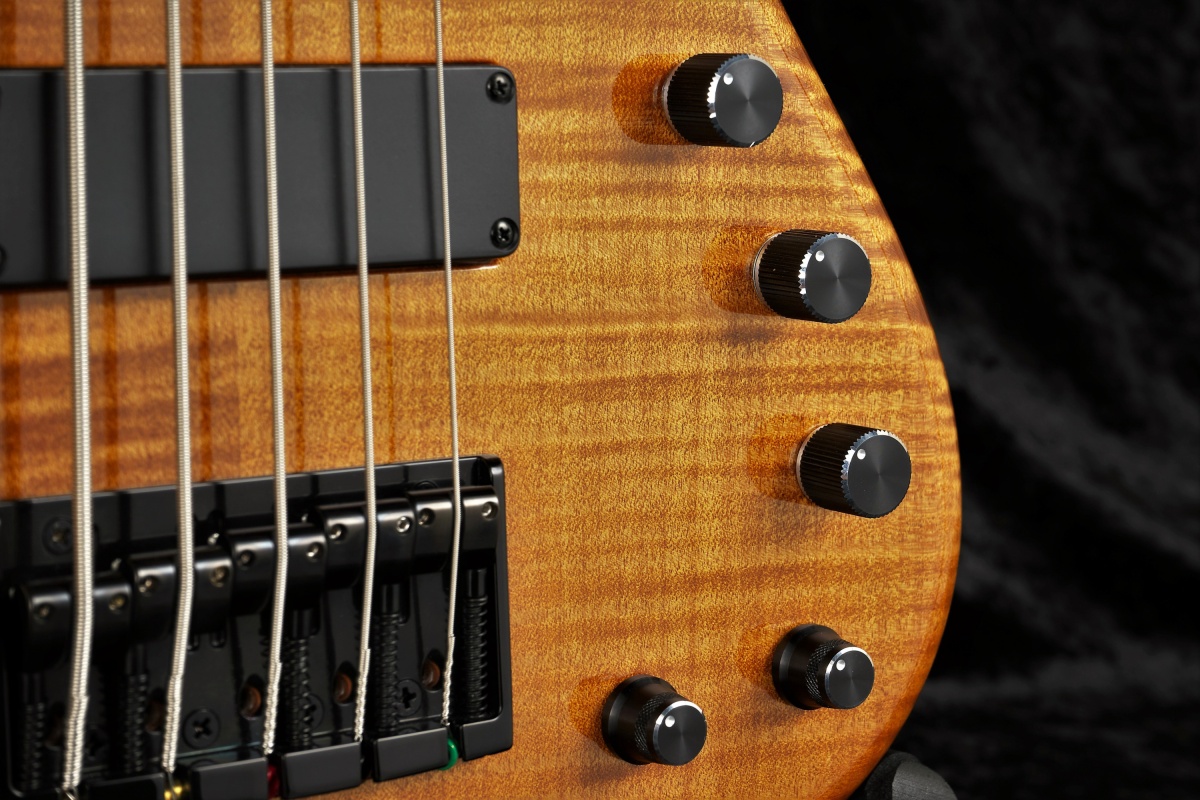

Control 1

2Vol, 1Tone (Push:Active / Pull:Passive)

Control 2

Treble, Bass

Bridge

GOTOH 404BO-4 (19mm Pitch)

Neck Finish / Color

Poly ・ Full Flat - Thin Skin Finish / Natural

Body Finish

Poly ・ Gloss

Strings

D'Addario 45-105

Dulake Flat-5st. Base Price (before tax): ¥670,000

Order
Neck / Shape

Maple / U-Shape

Scale

34in

Joint

Arimizo & One Point Joint

Nut / Nut Width

Real Carbon / 46mm

Fret

F.C.G.R. SP-SF-09 WARM

Fingerboard Radius

400R

Top Position Mark

・Rosewood FB:Abalone with border Oval ・Maple FB:White Shell with border Oval

Side Position Mark

・Rosewood FB:Luminlay - 3mm (Green) ・Maple FB:Luminlay w/Black Pipe - 3mm (Green)

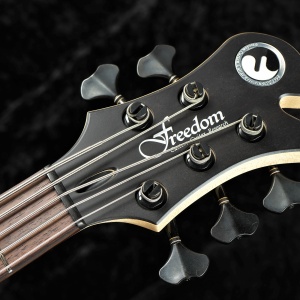

Machinehead

GOTOH GB350-2L3R

Body Top Wood

Standard Grade Figured Maple 2pc / Wenge

Pickups

Dulake HB 18mm Pitch Set

Control 1

2Vol, 1Tone (Push:Active / Pull:Passive)

Control 2

Treble, Bass

Bridge

GOTOH 404BO-5 (18mm Pitch)

Neck Finish / Color

Poly ・ Full Flat - Thin Skin Finish / Natural

Body Finish

Poly ・ Gloss

Strings

D'Addario 45-125

Downloads

Quality

Commitment to carefully selected wood and durability

To build a guitar that sounds great even after 100 years, at F.C.G.R. we select our woods very carefully. The selected wood is stabilized in our special humidity-controlled warehouse for up to one year to eliminate the possibility of warpage later.

Original stainless steel frets

Our stainless-steel fret wire has been specially developed by F.C.G.R. to be completely rust-proof and reduce the necessity for maintenance for the lifetime of the instrument. Additionally, our stainless steel produces a warmer sound, eliminating the excessive brightness often associated with typical stainless steel frets.

Stability and solid performance

Often guitars and basses are strung up for the first time after the fretwork and set-up have been completed. At F.C.G.R. after the necks are painted, we assemble the full instrument and tension up their strings for a few weeks - this allows the neck to settle into its final stable shape. Using a specially designed rig, we then adjust the frets with the neck in its final playing position, with the same curvature as when strings are present. Through this process we can achieve the highest standard for our fretwork, which cannot be achieved in mass-produced instruments.

Glow in the dark side-position markers

We use Luminlay SG-30 (3mm) side-position markers which gather light and glow in the dark. It is a small touch, but invaluable on a dark stage - where it will allow you to play with greater confidence and less worry about losing your way around the fingerboard.

Color

There is a story behind each of our original colours - and we continue to develop new ones all the time! Since the thickness, and type, of paint and lacquer used influences the resonance of the instrument, we can use our years of experience to produce a finish that brings out the character of your individual instrument. We welcome you to inspect our colour chart, and visit our showroom if possible to see our finishes in person. And if there are colours that you would like on your instrument and cannot see on our page - please let us know, we'll do our best meet your request.

ARIMIZO & One Point Joint: a new dimension for tone control

We have developed, and patented, a new way of controlling the tone of your instrument by varying the degree of mechanical dampening of vibrations. By adjusting a single bolt, you can vary between a snappier response, or a more dampened vintage tone. With the bolt tightened, some overtones are suppressed, the attack becomes stronger and response is immediate. With the bolt loosened, you get a warmer sound, rich in overtones. It truly feels as if you had just switched instruments. To maintain the stability of the joint consistently with the natural expansion and shrinkage that occurs in wood, utmost precision and high technological sophistication is necessary. Our design is covered by the patent number 5879135.
