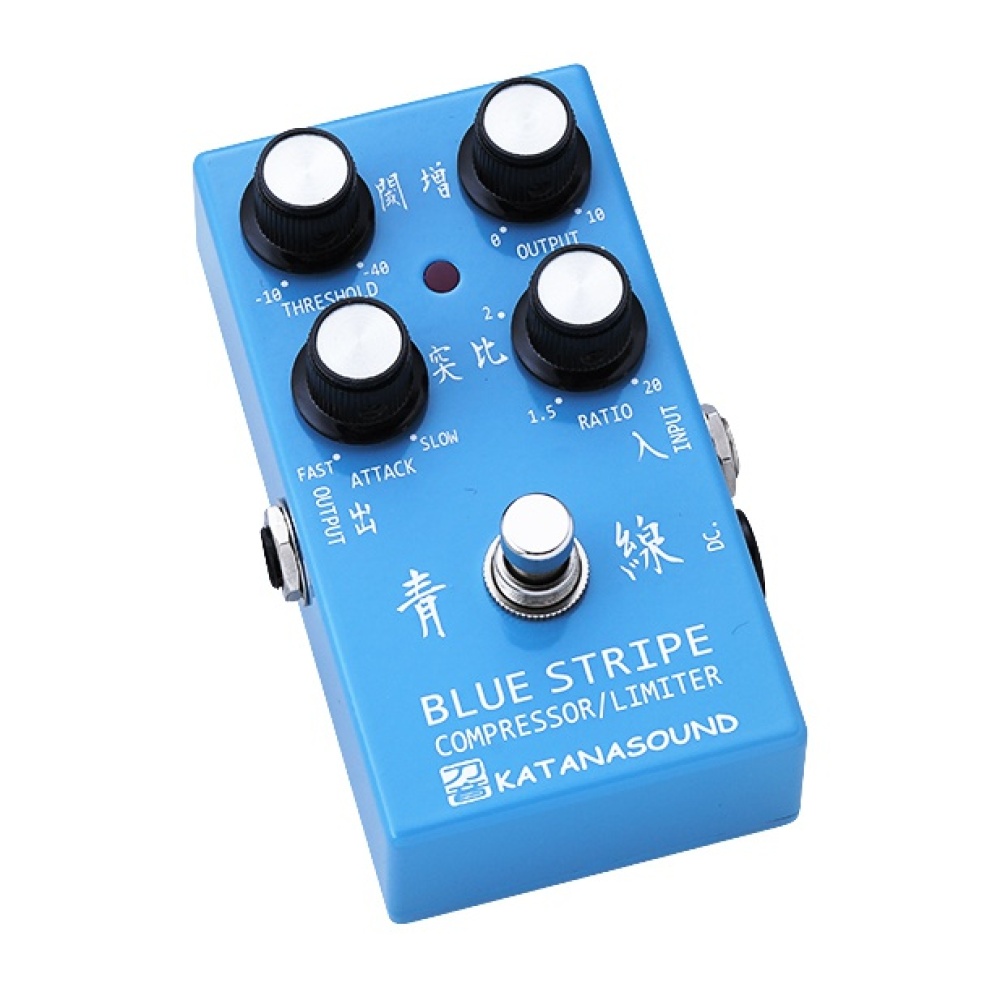

Blue Stripe “青線”

* This product has been sold out.

This pedal is based on the circuit of the famous instrument "Urei 1176" compressor.
In other words, it is a compact-sized studio-quality compressor / limiter.

As with the 1176, the gain reduction element adopts a FET with quick response characteristics, and clear compression is obtained through a discrete circuit that does not use any ICs from input to output.

By making full use of the four controls, it is possible to achieve more precise control while reproducing the nuances of a conventional compressor. Furthermore, either a Hi-Fi sound and mild tone can be achieved by the adjusting the trimmer pot at the side of casing.


9V battery and AC adapter are sold separately.
<AC adapter for main unit>
Voltage: DC 9 V, current: 100 mA or more, center negative 2.1 mm
Product specifications and appearance are subject to change without notice.

Specifications

Blue Stripe "青線"
MODEL NUMBER

KS-EF-09

TERMINAL

Input、Output、DC. Input (2.1mm / 9V center minus polar)

CONTROL

Threshold(-10~-40dB), Ratio(1.5:1~20:1), Attack(5~50ms), Output Dull

SWITCH

On/Off Switch (True Bypass)

SIZE

W68mm×D111mm×H49mm

WEIGHT

270g (Battery not included)

POWER

9VDC

PRICE

Open Price

ACCESSORIES

Instruction Manual

Downloads
